Product Details
Description:

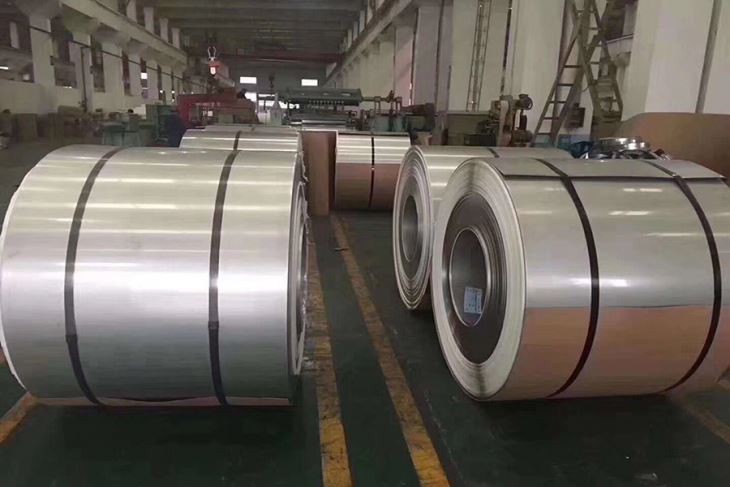

2205 Stainless Steel Coil is a duplex stainless steel composed of 22% chromium, 3% molybdenum and 5-6% nickel-nitrogen alloy. It has high strength, good impact toughness and good overall and local strong corrosion resistance. Compared with 316L and 317L austenitic stainless steels, 2205 alloy is superior in resistance to pitting and crevice corrosion. 2205 Stainless Steel Coil has high corrosion resistance, and compared with austenite, it has a lower coefficient of thermal expansion and thermal conductivity.
Compared to austenitic stainless steels, 2205 Stainless Steel Coil has twice the compressive strength, and it is lighter and less expensive than 316L and 317L. Its yield strength is twice that of austenitic stainless steels, which allows designers to reduce weight when designing products, making this alloy more affordable than 316, 317L.
Characteristics:
Composition:
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
2205 (S31803) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 21.0 23.0 | 2.5 3.5 | 4.5 6.5 | 0.08 0.20 |
2205 (S32205) | Min Max | - 0.030 | - 2.00 | - 1.00 | - 0.030 | - 0.020 | 22.0 23.0 | 3.0 3.5 | 4.5 6.5 | 0.14 0.20 |
Mechanical Properties:
Grade | Tensile Str | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm)min | Hardness | |
Rockwell C (HR C) | Brinell (HB) | ||||
2205 | 621 | 448 | 25 | 31 max | 293 max |
Physical Properties:
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (μm/m°C) | ThermalConductivity (W/m.K) | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
2205 | 782 | 190 | 13.7 | 14.2 | - | 19 | - | 418 | 850 |
Details:
Specification: JIS, AISI, ASTM, GB, DIN, EN
Size:
Thickness:
Cold rolled: 0.3mm-6mm
Hot rolled: 3.0mm-16mm
Width: 1000/1219/1500/2000mm/2500
Length: as customer requirement
Surface: 2B, BA, No.4, HL, 180Grit, 320Grit, etc.

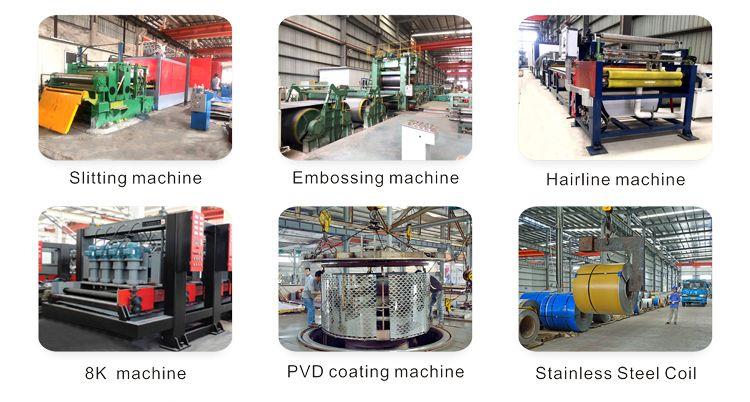

Production Process:

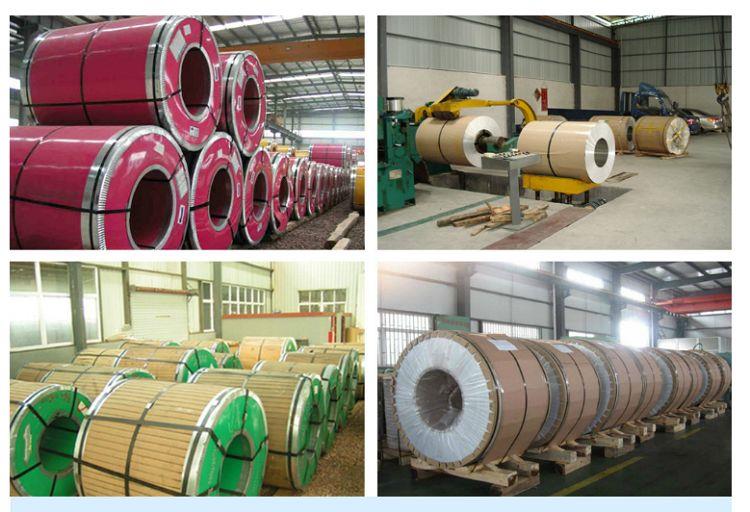

Packing:
All our products are packed, stored, transported according to the international regulation. The products are wrapped with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.Ply wooden box are available for special protection. Other kinds of packing can be offered if request.
Hot Tags: 2205 stainless steel coil, China 2205 stainless steel coil manufacturers, suppliers, factory
